3 Way Manifold Valve

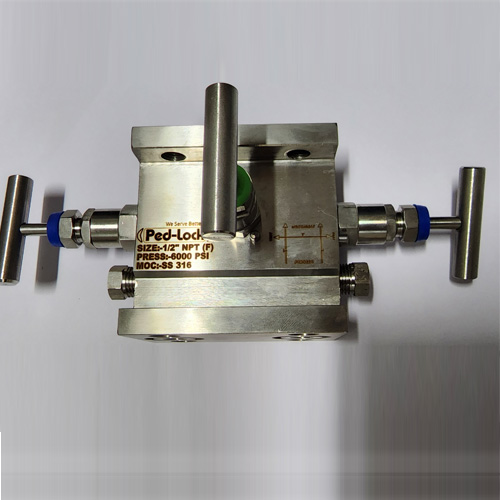

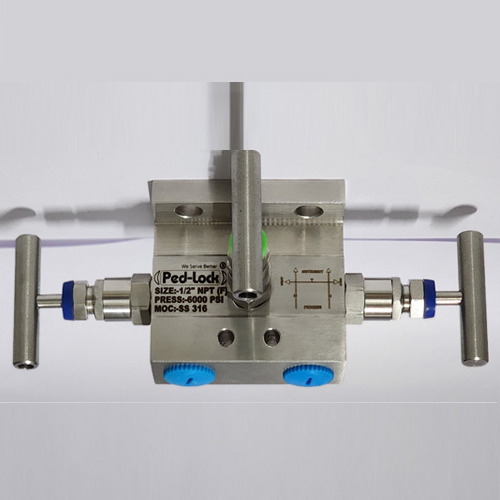

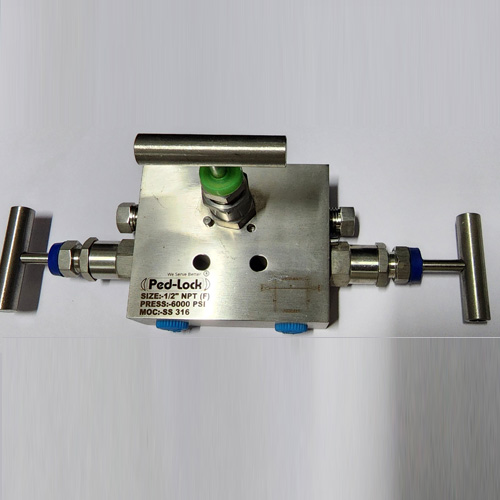

We are presenting a wide range of 3 Valve Manifolds, consists of two block Valves and an equalizer valve. Connection are 1/2" Female NPT on 2-1/8" (54mm) centers for safety, a bonnet lock pin is standard. This valve is used for 2 isolate & I equalizer valve for equalizing the high pressure & low pressure lines. This 3 Way Manifold Valve are designed for direct mounting. The connecting from process Flange connection of this valve is suitable for its process and Instrument side Flange connection on suitable for DP Transmitter.

This valve is also designed for remote or separate mounting connecting impulse lines or transmitters or flow records to impulse line tubing & is supplied in compliance with the international quality standards like BIS, BS and more. This precision engineered 3 Valve Manifolds is made by using SS-316, SS-304, carbon steel, haste alloy, Monel, inconel etc. This valve finds their applications in varied industries like chemical, petro-chemical, oil and many more. Our company supplied these 2 valve manifold and 5 valve manifolds to our clients at their pocket friendly prices and we accomplish bulk orders within specified time period.

3 Way Manifold Valve

Our manufactured range of 3 Valve Manifolds is generally used in differential pressure applications with pressure gauges, switches and transmitters. In this valve, 2 isolation valves and 1 equalizing valve, drain connection of ΒΌ" NPT is also provided as an option through its manufacturing process by our experts.
